DC-Impact Flowmeter

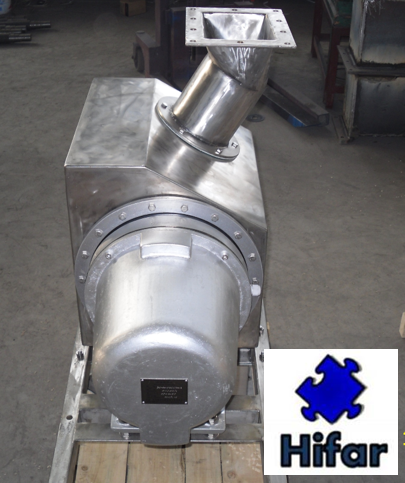

Hifar DC Impact Flowmeter
Hifar DC impact flow meter is able to accurately measure the rate of flow of a variety of materials. This function is an essential tool in monitoring the actual flowrate of materials going through a process. Hifar DC impact flow meter has been widely used in cement, steel, foods, chemicals, coal-fired power generation industries
Key Features of DC Impact Flowmeter
Min Enviroment Temp -40℃ |
Powder?and?Particles:From?Mini?Particles?to?Fist-size?Bulk |
|---|---|
Range：0～400t/h |
Rugged design |
Dust Prevention Structure |
No moving parts
|
Accuracy to better than ± 1%
|
Dust tight enclosure
|
Principle and Operation of DC Impact Flow Meter：
A flowmeter is a weighing solution that combines two components:1. Flowmeter (with LVDT sensing head or load cell(s) Flowmeters monitor the flow rate of gravity fed material in pipes or chutes
2. Integrator Integrators collect the data from the flow sensor and output: ?
*Flow rate
*Totalization
Common Materials :
Alumina,Ammonium,Asbestos Rock,Calcined Coke,Calcined Gypsum,Carbon,Cement,Cocoa Beans,Coke,Copper,Corn,Fertilizer,Klin feed,Gypsum,Graphite,Limestone (crushed),Polymers,Resin,Sugar

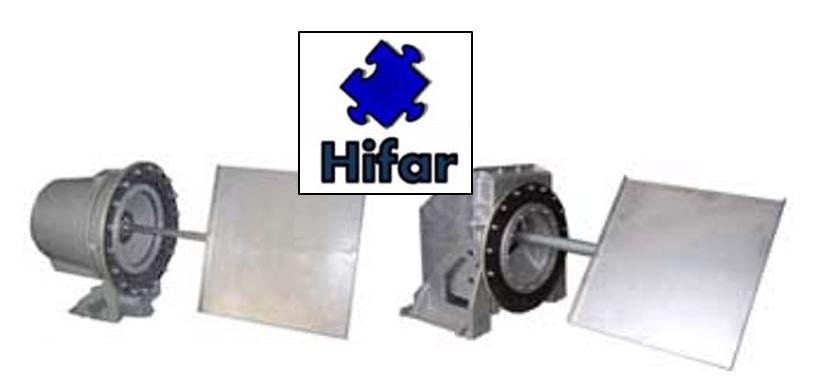

Flowmeter (with LVDT sensing head) Options：
Product# |
axis |
Max Plate Size |
Flowmeter Weight（kg) |
Dust Tight Enclosure |
Measurement Range |
DC-40 |
21.3 |
400×400 |
30 |
Dust Prevention Structure |
0-500kg/h 0-40t/h |
DC-200 |
42.4 |
600×600 800×800 |
80 |
Dust Prevention Structure |
40-400t/h |

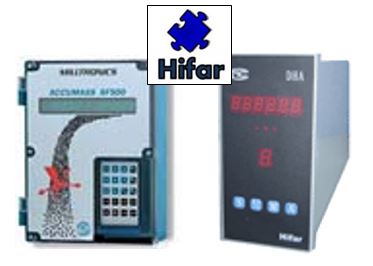

Integrator Options:
Hifar DHA Integrator or SF500 Integrator（SIEMENS）。
